商品详情
产品类型：英制圆锥滚子轴承
轴承型号：SET41
内径(d):38.100mm
外径(D):65.088mm
装配高度(T):18.034mm
内圈高度(B):21.138mm
外圈高度(C):13.970mm
重量:0.26KG
硬度:59-62HRC
保持器：压顶保持器
材质：轴承钢，GCR15
外观：精美，光亮，无划痕，无磕碰伤
包装：工业包装或单个彩盒包装
防锈：防锈质保二年
产品特点：高转速 寿命长 高精度 低噪音
用途: 汽车轴承 拖车轴承 齿轮轴承
临清市普菲轴承有限公司生产深沟球轴承和圆锥滚子轴承，英制圆锥滚子轴承，
产品全检。内套和外套可以互换使用，按您要求来做包装，如有需要，欢迎随时询价！
|

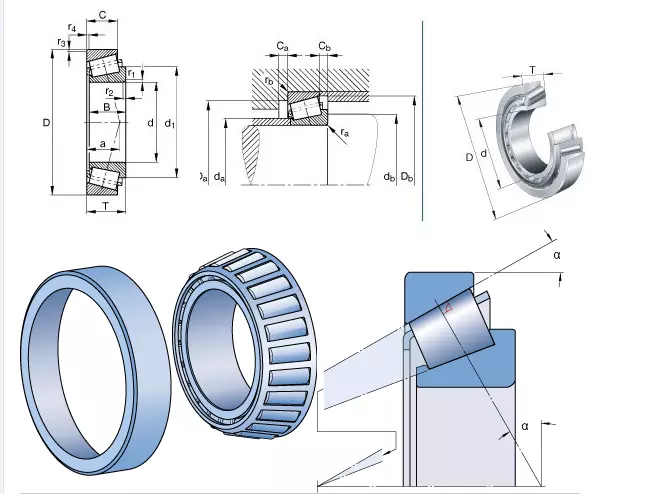

Bearing numbers |
Dimensions(mm) | Weight | ||||||
| d | D | T | B | C | R | r | Kg | |
| 30203 | 17 | 40 | 13.25 | 12.0 | 11.0 | 1.0 | 1.0 | 0.074 |
| 30204 | 20 | 47 | 15.25 | 14.0 | 12.0 | 1.0 | 1.0 | 0.12 |
| 30205 | 25 | 52 | 16.25 | 15.0 | 13.0 | 1.0 | 1.0 | 0.15 |
| 30206 | 30 | 62 | 17.25 | 16.0 | 14.0 | 1.0 | 1.0 | 0.22 |
| 30207 | 35 | 72 | 18.25 | 17.0 | 15.0 | 1.5 | 1.5 | 0.32 |
| 30208 | 40 | 80 | 19.75 | 18.0 | 16.0 | 1.5 | 1.5 | 0.42 |
| 30209 | 45 | 85 | 20.75 | 19.0 | 16.0 | 1.5 | 1.5 | 0.47 |
| 30210 | 50 | 90 | 21.75 | 20.0 | 17.0 | 1.5 | 1.5 | 0.53 |
| 32004X | 20 | 42 | 15.00 | 15.0 | 12.0 | 0.6 | 0.6 | 0.097 |
| 32005X | 25 | 47 | 15.00 | 15.0 | 11.5 | 0.6 | 0.6 | 0.11 |
| 32006X | 30 | 55 | 17.00 | 17.0 | 13.0 | 1.0 | 1.0 | 0.17 |
| 32007X | 35 | 62 | 18.00 | 18.0 | 14.0 | 1.0 | 1.0 | 0.22 |
| 32008X | 40 | 68 | 19.00 | 19.0 | 14.5 | 1.0 | 1.0 | 0.27 |
| 32009X | 45 | 75 | 20.00 | 20.0 | 15.5 | 1.0 | 1.0 | 0.34 |
| 32010X | 50 | 80 | 20.00 | 20.0 | 15.5 | 1.0 | 1.0 | 0.37 |
| 32206 | 30 | 62 | 21.25 | 20.0 | 17.0 | 1.0 | 1.0 | 0.294 |
| 32207 | 35 | 72 | 24.25 | 23.0 | 19.0 | 1.5 | 1.5 | 0.43 |
| 32208 | 40 | 80 | 24.75 | 23.0 | 19.0 | 1.5 | 1.5 | 0.537 |
| 32209 | 45 | 85 | 24.75 | 23.0 | 19.0 | 1.5 | 1.5 | 0.58 |
| 32210 | 50 | 90 | 24.75 | 23.0 | 19.0 | 1.5 | 1.5 | 0.61 |
| LM11749/10 | 17.462 | 39.878 | 13.843 | 14.605 | 10.668 | 1.3 | 1.3 | 0.081 |
| LM11949/10 | 19.05 | 45.237 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 0.125 |
| A6075/A6157 | 19.05 | 39.992 | 12.014 | 11.153 | 9.525 | 1.0 | 1.3 | 0.07 |
| M12649/10 | 21.43 | 50.005 | 17.526 | 18.288 | 13.970 | 1.3 | 1.3 | 0.169 |
| LM12748/10 | 21.43 | 45.237 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 0.121 |
| LM12749/10 | 21.986 | 45.237 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 0.120 |
| LM12749/11 | 21.986 | 45.974 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 0.123 |
| JLM22349/10 | 22 | 41 | 14.400 | 14.400 | 11.400 | 0.8 | 0.8 | 0.08 |
| L44643/10 | 25.400 | 50.292 | 14.224 | 14.732 | 10.668 | 1.3 | 1.3 | 0.13 |
| M84548/10 | 25.400 | 57.150 | 19.431 | 19.431 | 14.732 | 1.5 | 1.5 | 0.241 |
| L44649/10 | 26.988 | 50.292 | 14.224 | 14.732 | 10.668 | 3.5 | 1.3 | 0.12 |
| L45449/10 | 29.000 | 50.292 | 14.224 | 14.732 | 10.668 | 3.5 | 1.3 | 0.113 |
| 329013 | 29.000 | 50.292 | 14.224 | 17.520 | 10.668 | 3.5 | 1.3 | 0.117 |
| LM67048/10 | 31.750 | 59.131 | 15.875 | 16.764 | 11.811 | 1.3 | 0.182 | |
| 15123/245 | 31.750 | 62.000 | 18.161 | 19.050 | 14.288 | 1.3 | 0.244 | |
| 14125A/14276 | 31.750 | 69.012 | 19.845 | 19.583 | 15.875 | 0.35 | ||
| LM48548/10 | 34.925 | 65.088 | 18.034 | 18.288 | 13.970 | 1.3 | 0.249 | |
| JL68145/11Z | 35.000 | 60.000 | 15.875 | 18.460 | 11.938 | 2.0 | 1.3 | 0.183 |
| L68149/10 | 35.000 | 59.131 | 15.875 | 16.764 | 11.938 | 1.3 | 0.165 | |
| L68149/11 | 34.988 | 59.974 | 15.875 | 16.764 | 11.938 | 1.3 | 0.179 | |
| JL69349/10 | 38.000 | 63.000 | 17.000 | 17.000 | 13.500 | 1.3 | 0.198 | |
| 57410/29710 | 38.100 | 65.088 | 18.034 | 21.138 | 13.970 | 1.3 | ||
| LM29749/10 | 38.100 | 65.088 | 18.034 | 18.288 | 13.970 | 2.3 | 1.3 | 0.233 |
| LM300849/11 | 40.988 | 67.975 | 17.500 | 18.000 | 13.500 | 1.5 | 0.239 | |
| LM501349/10 | 41.275 | 73.431 | 19.558 | 19.812 | 14.732 | 3.5 | 0.8 | 0.335 |
| 25580/20 | 44.45 | 82.931 | 23.812 | 25.400 | 19.050 | 3.5 | 0.8 | 0.56 |
| LM102949/10 | 45.242 | 73.431 | 19.558 | 19.812 | 15.748 | 3.5 | 0.8 | 0.307 |
| LM603049/11 | 45.242 | 77.788 | 19.842 | 19.842 | 15.080 | 3.5 | 0.8 | 0.372 |
| JLM104948/10 | 50.00 | 82.000 | 21.500 | 21.500 | 17.000 | 3.0 | 0.5 | 0.42 |
