通讯类
宜鼎弹性扩充的通讯卡模块系列，可针对工业系统提供稳定连接及带宽，并满足物联网下装置互连的需求。
Features
?Compliant?with?PCI?Express?1.1
?Meet?the?Requirements?of?the?ISO?11898-1
?CAN?bus?2.0B?backward?compatible?with?2.0A
?Support?baud?rate?10/20/50/100/250/500/800/1000K
?Support?CAN?message?acceptance?filter
?Support?Linux?SocketCAN
?Compliant?with?IEC?60950-1:2005?+?A1:?2009?+?A2:2013
2.5kV?HiPOT?protection
?Compliant?with?EN61000-4-2?(ESD)?Air-15kV,?Contact-8kV
?Termination?resistor?enabled/disabled?by?switch
?30μ”?golden?finger,?3-year?warranty
?Industrial?Temperature?(-40°C?to?+85°C)?support
?Industrial?design,?manufactured?in?Innodisk?Taiwan
规格：
| Module Name | EGPC-B1S1 |
| Module Type | M.2 2242 to single isolated CAN bus Module |
| Function | CANbus |
| bbbb Factor | M.2 2242-B-M |
| bbbbb I/F | PCI Express 1.1 |
| Output I/F | CAN bus 2.0B |
| Output connector | DB-9 x 1 |
| Power Consumption | 2.5W (3.3V x 742mA) |

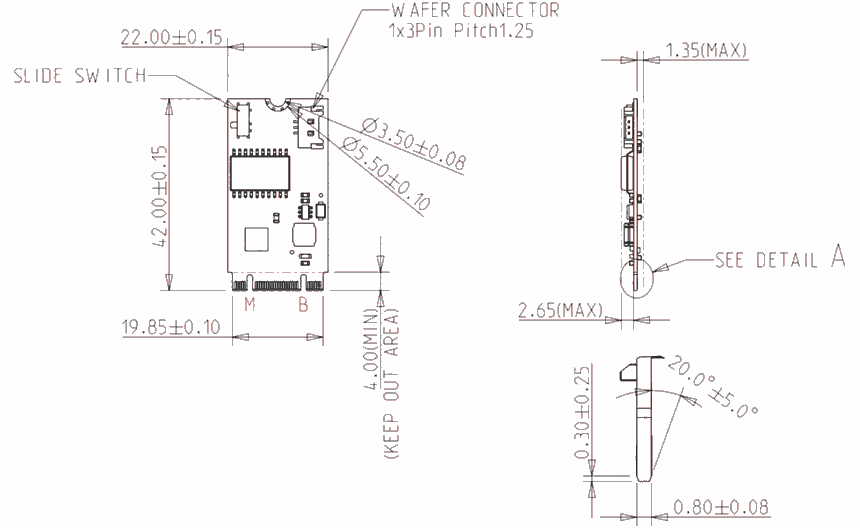

| Dimensions (W x L x H/mm) | 22 x 42 x 4.8 |
| Temperature |
Operation: W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C |
| Environment |
Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms |
| Notes |
Download driver and API from MyInnodisk website. Windows: 7(32/64bit), 8/8.1(32/64bit), 10(32/64bit) Linux: SocketCAN driver from Kernel 2.6.38 and above (32/64bit) |
产品料号：
| P/N | Description |
| EGPC-B1S1-W1 | M.2 2242 to single isolated CAN bus 2.0B Module |
